22797

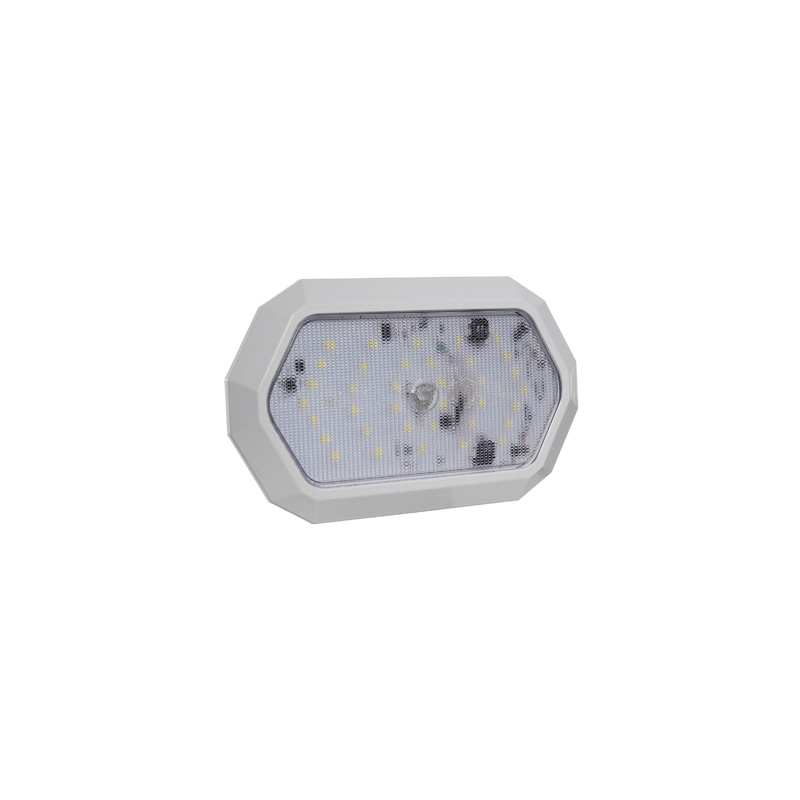

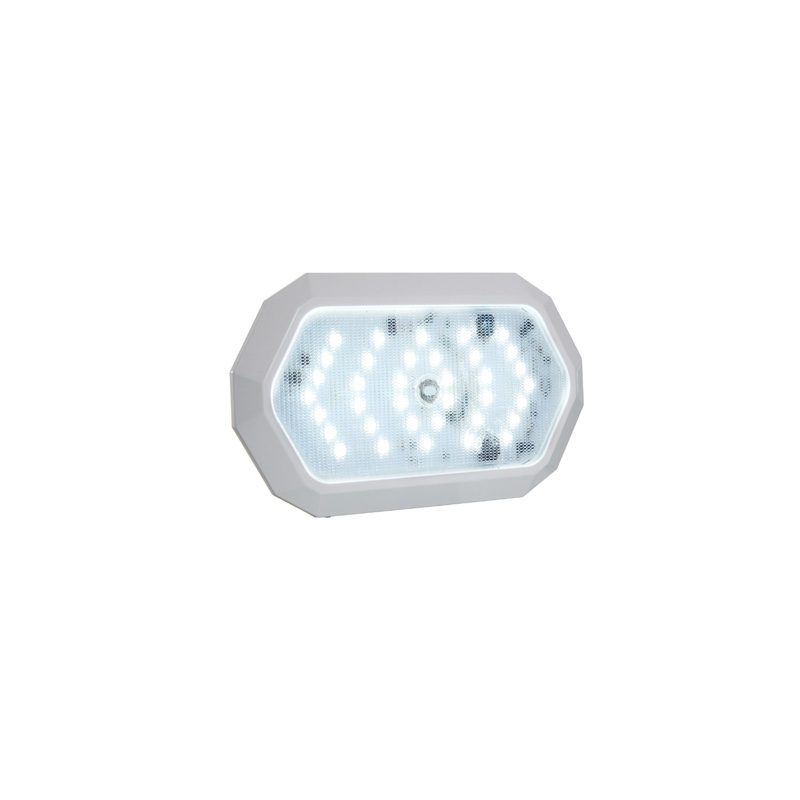

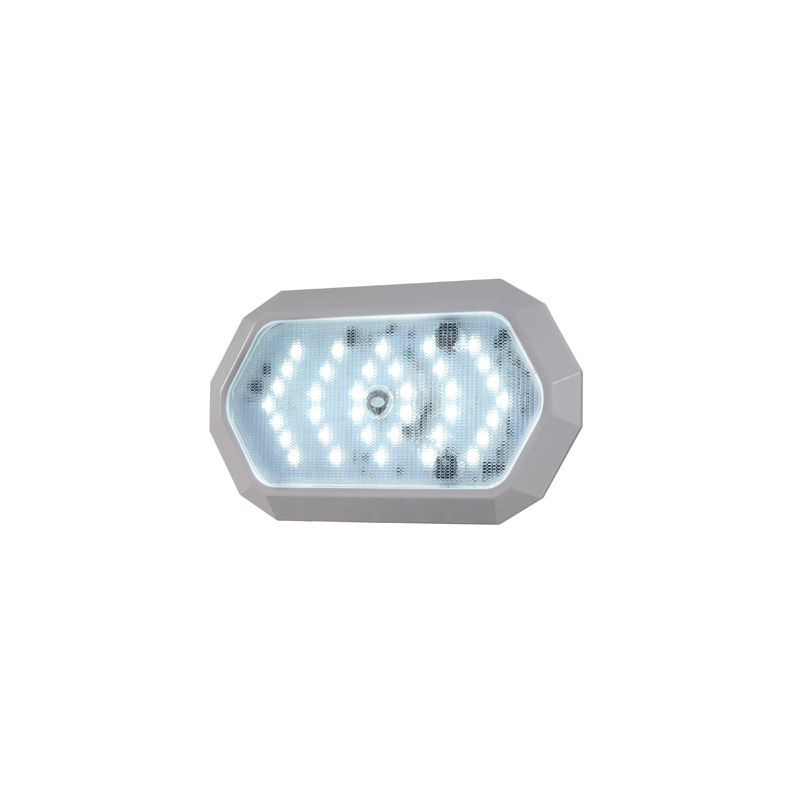

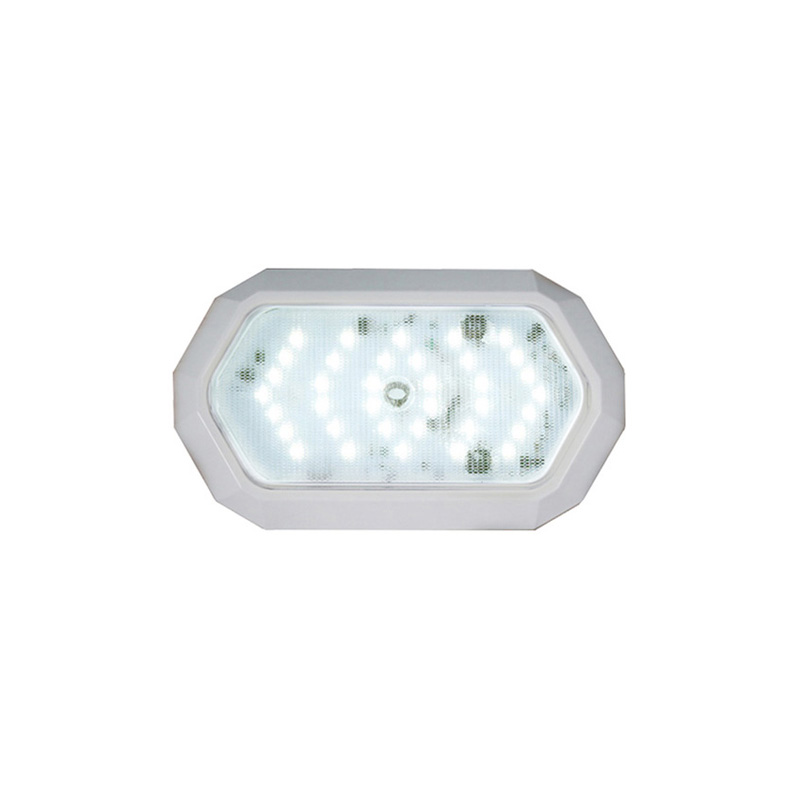

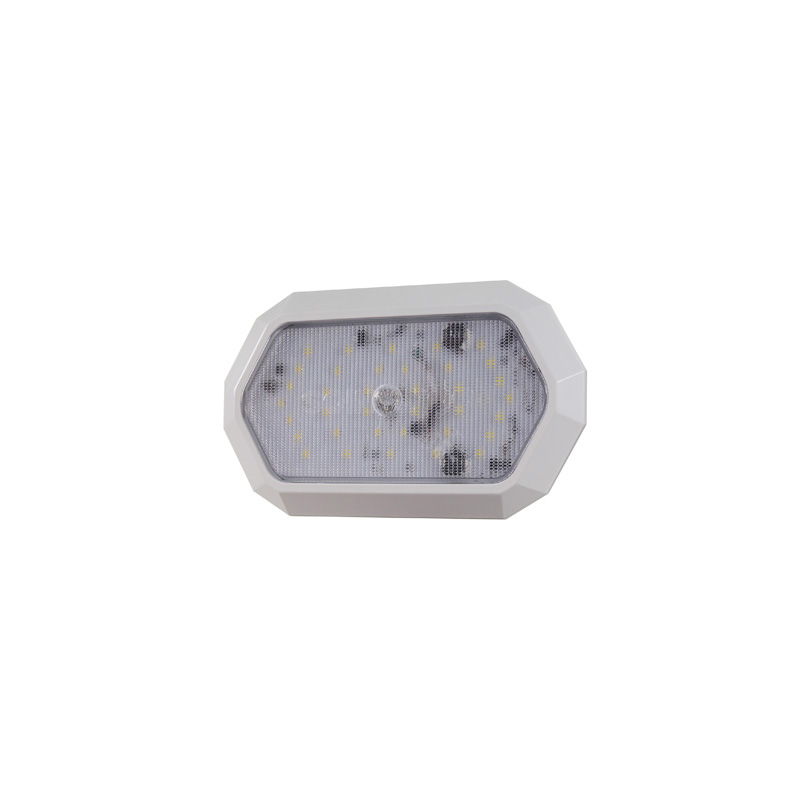

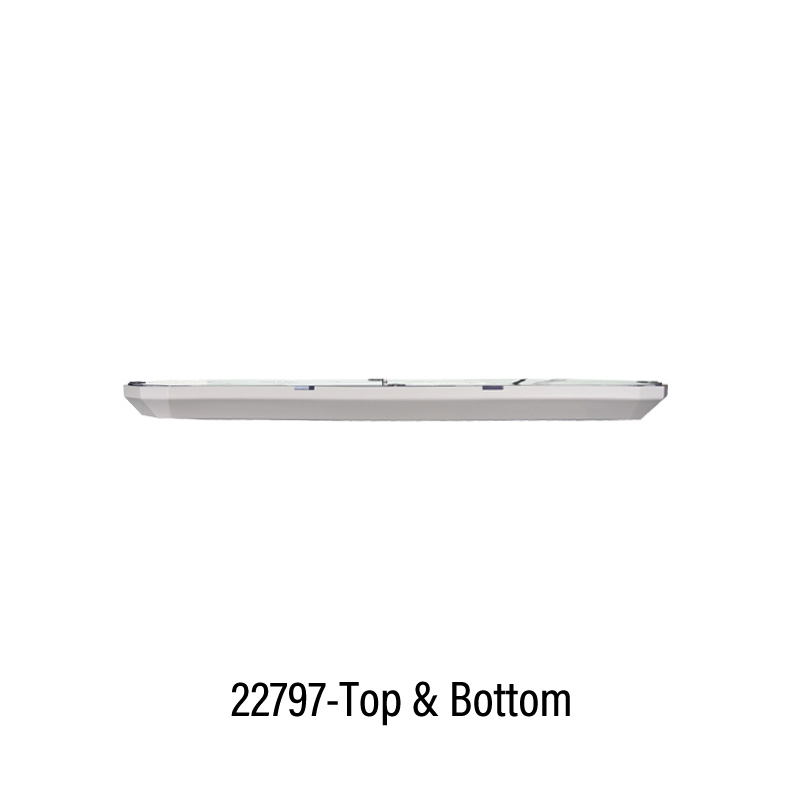

LED Interior Lamp

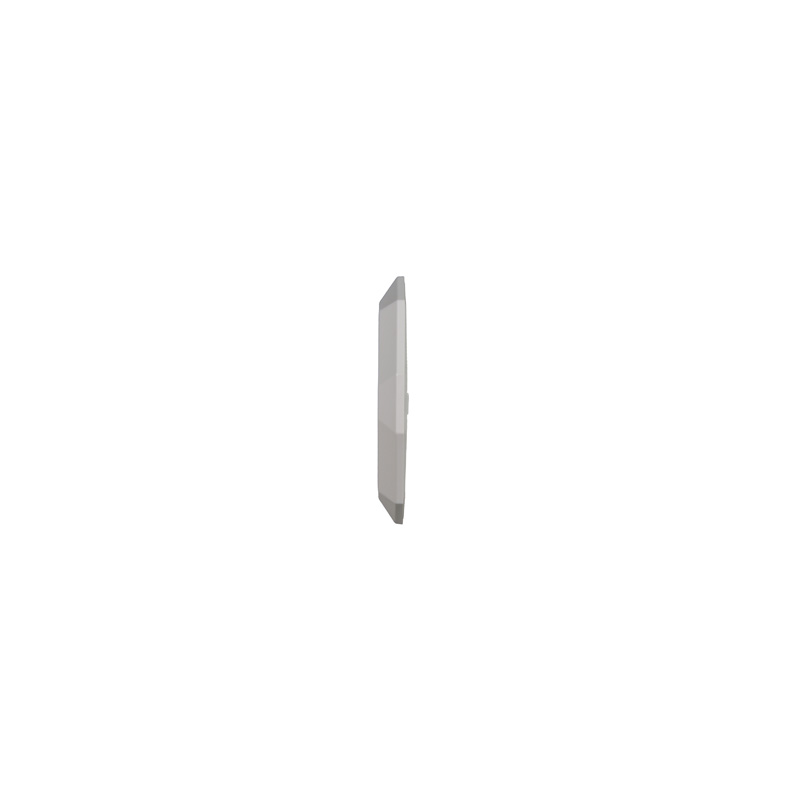

- Ultra-thin design for better installation and use
- Brand new diamond shape outlook
- Efficient way to light up the interior space
- Available with or without switch

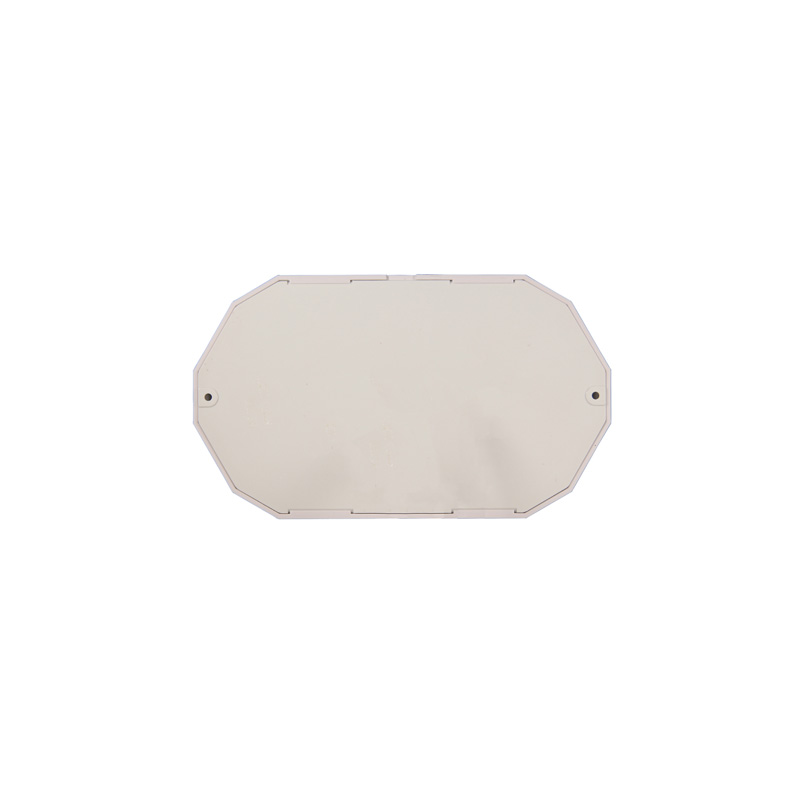

- Surface mount: no panel cut-out required
- Dimmer switch used to adjust the brightness upon request

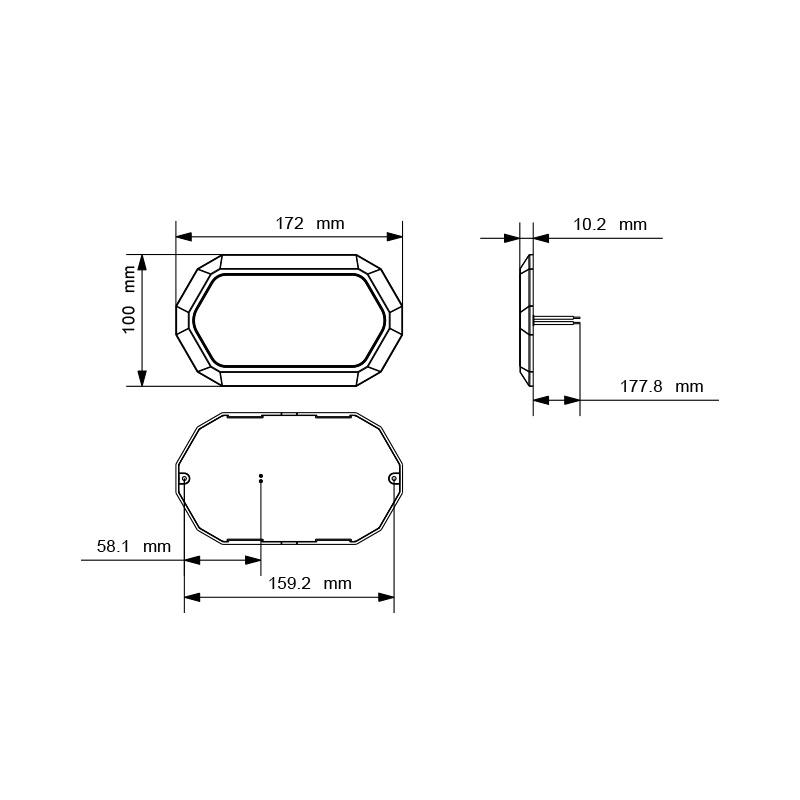

- Ideal for most vehicle applications with selectable dimensions
Feature
- Part No.
- Regulation
- IP Rating
- Markets
- Shape
- Voltage
- Function
- Mounting Type
- SMD LEDs
- Raw Lumen
- Effective Lumen
- HV CD
- Connection
- Temperature
-
-
22797C
- EMC
- IP67
- Heavy Duty Trailer │ Bus │ Leisure Vehicle
- Diamond
- 12~24V
- Surface Mounting
- 36
- 1475
- 1222
- 354
- 170mm fly lead
- -30°C~50°C
-
-
-
22797CS
- EMC
- IP67
- Heavy Duty Trailer │ Bus │ Leisure Vehicle
- Diamond
- 12~24V
- Touch switch
- Surface Mounting
- 36
- 1475
- 1222
- 354
- 170mm fly lead
- -30°C~50°C
-
