68012
Blink Device for side marker lamps
- According to ECE R48, Rev. 6., vehicles of categories O3 & O4 (trailers above 3.5t) homologated after 18 Oct, 2017 side markers must flash synchronously with direction indicators
- Numbers of side markers connect to the cable of the device which will be centrally controlled by Blink Device
- Universal version
- Operating temperature -30°C ~ 50°C
- 1 unit per vehicle side, 2 units per vehicle
- The maximum current consumption of marker lamps must not exceed 2 amperage per blink device
Feature
- Part No.
- Markets
- Voltage
- Note
-
-
68012
- Heavy Duty Trailer
- 12~24V

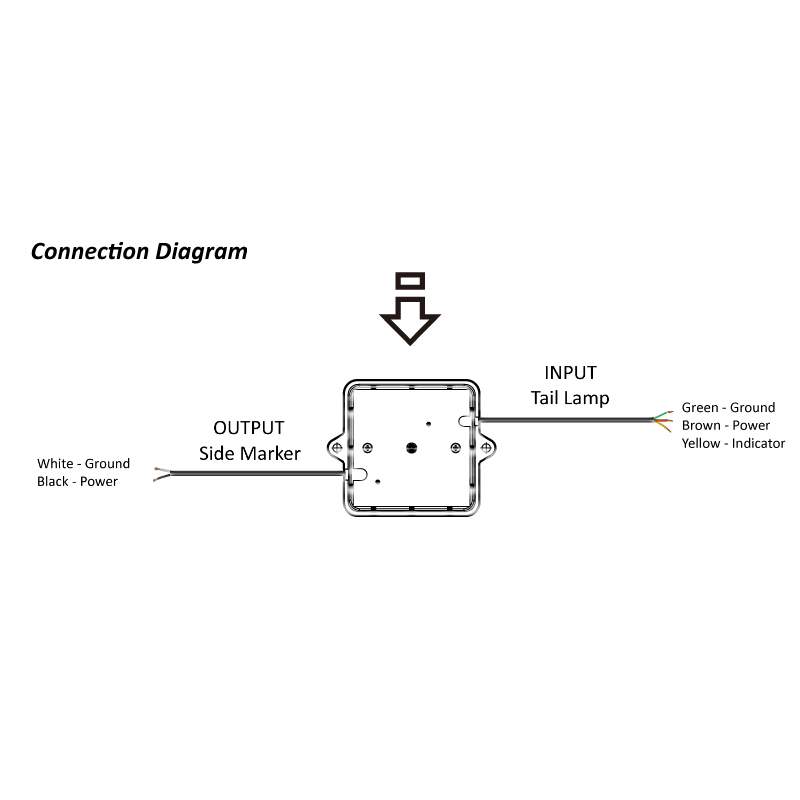

- Input: 520mm cable
Output: 520mm cable
-
