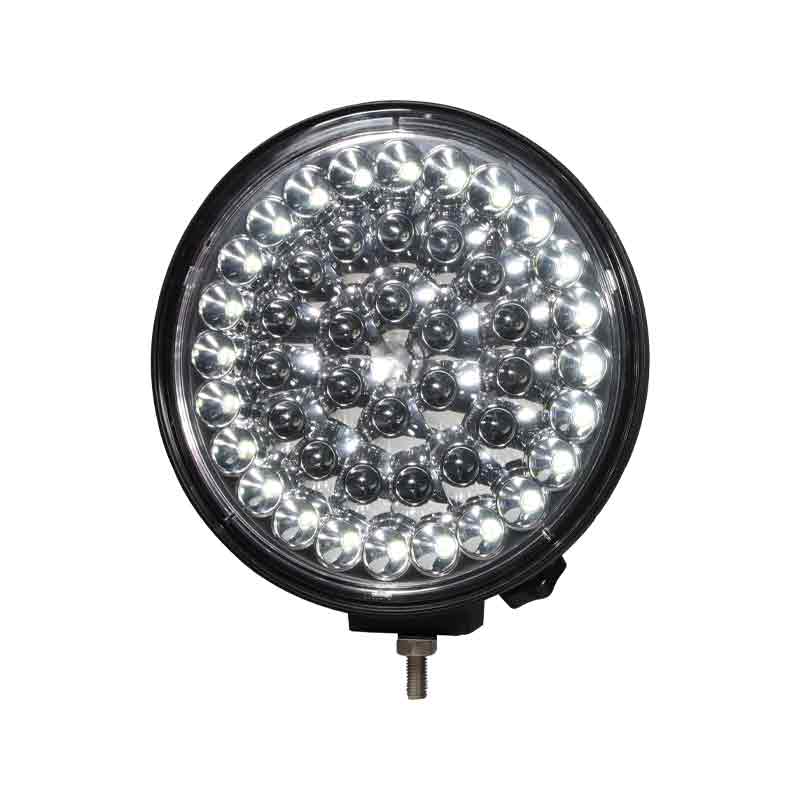

9'' LED Combination Driving Lamp

  • Innovative lamp consists of 3 functions, driving, front position, daytime running
  • Free-form reflector design creates brillant look
  • Unbeatable performance in night driving, long distance & serious off road illumination
Feature
Specification Beam Pattern
  • Part No.
  • IP Rating
  • Markets
  • Shape
  • Voltage
  • Mounting Type
  • Light Pattern
  • SMD LEDs
  • Watts
  • Raw Lumen
  • Effective Lumen
  • HV CD
  • Current Draw
  • Connection
  • Temperature
  • Lens
  • Housing
  • Hardware

    • 22830 / 22830W

      Add to inquiry Compare products
    • IP69K
    • Heavy Duty Truck
    • Round
    • 9~32V
    • Bracket Mounting
    • Combo
    • 21
    • 63.5
    • 4200
    • 2700
    • 57000
    • 13.5V at 4.7A
      28.0V at 2.26A
    • DT 4 way connector

      500mm CABLE (22830W)
    • -30℃~50℃
    • PC
    • Aluminum
    • Stainless steel
