22891

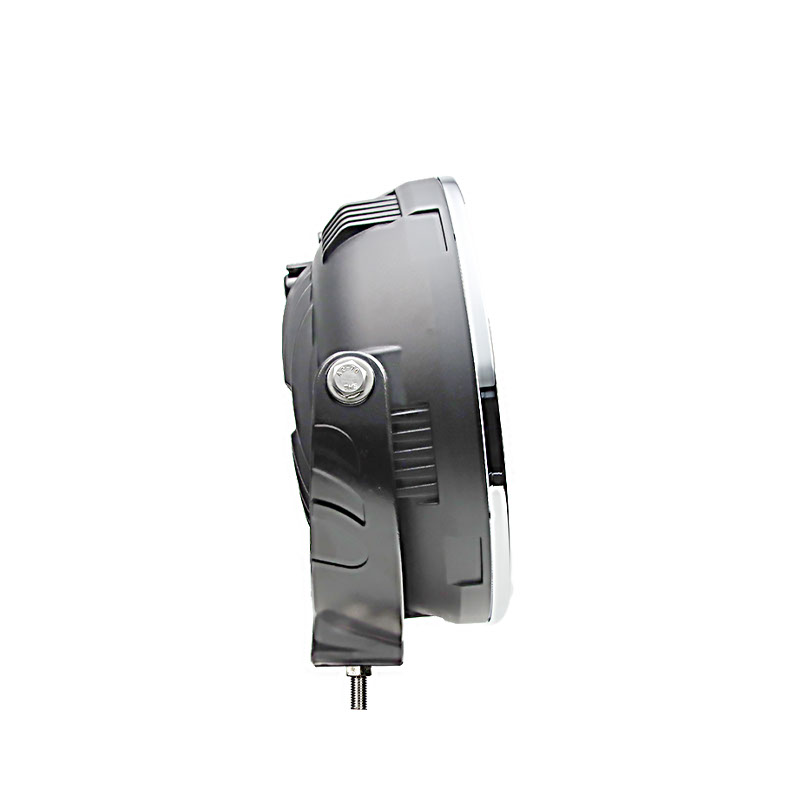

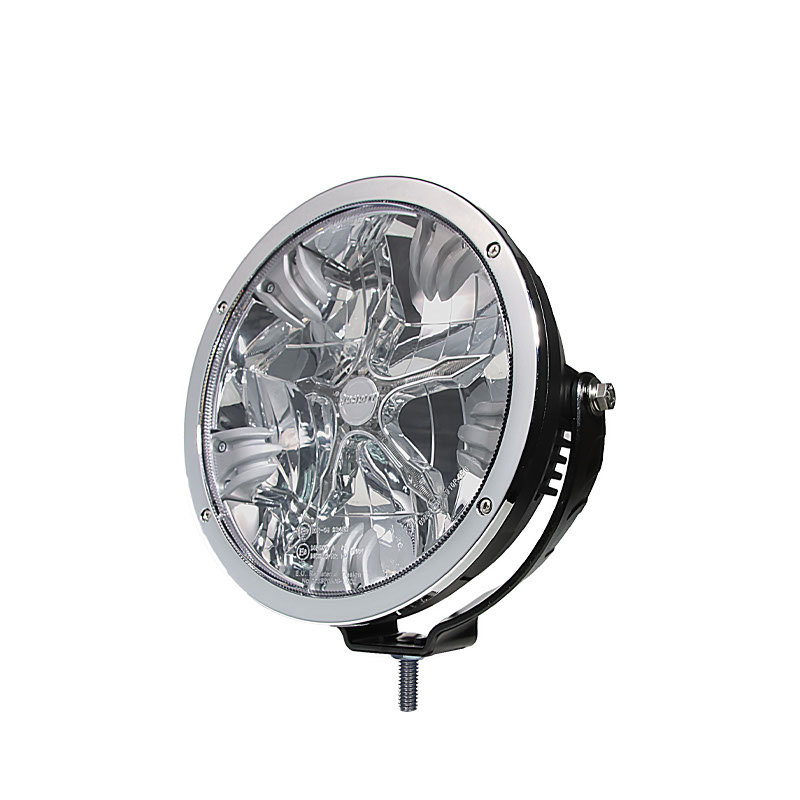

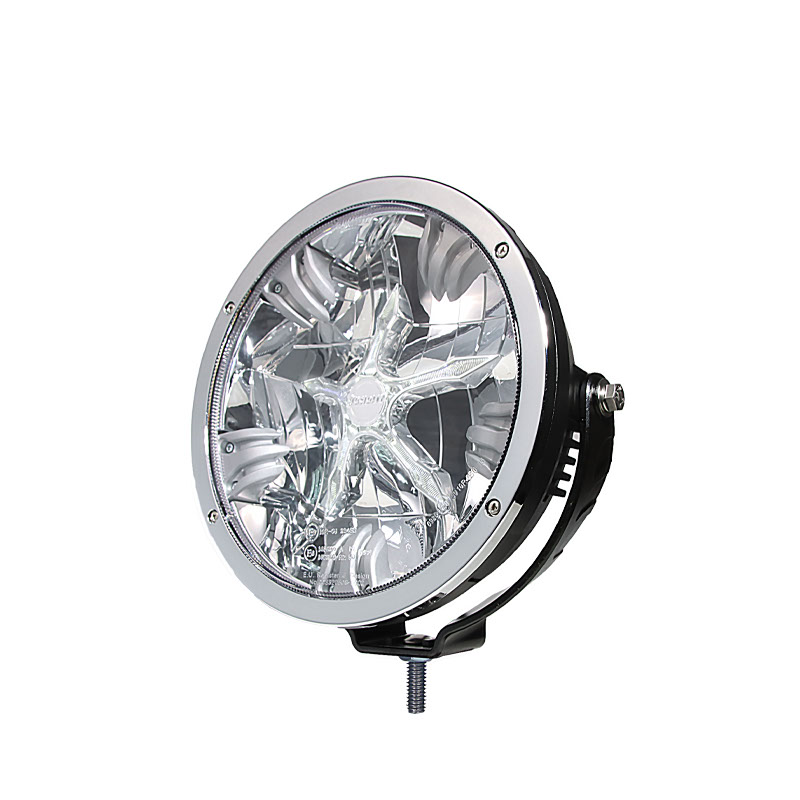

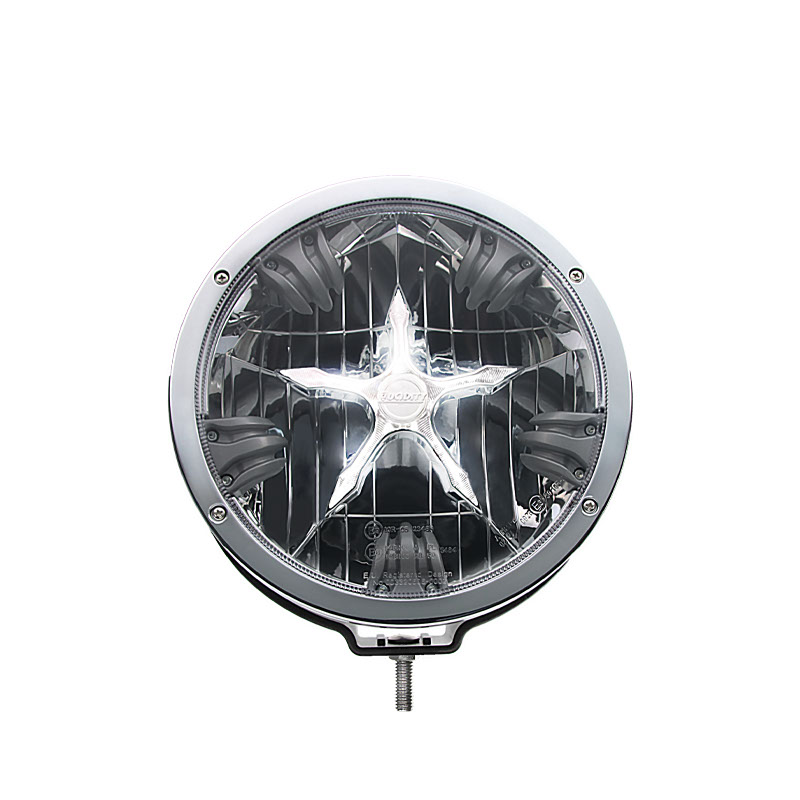

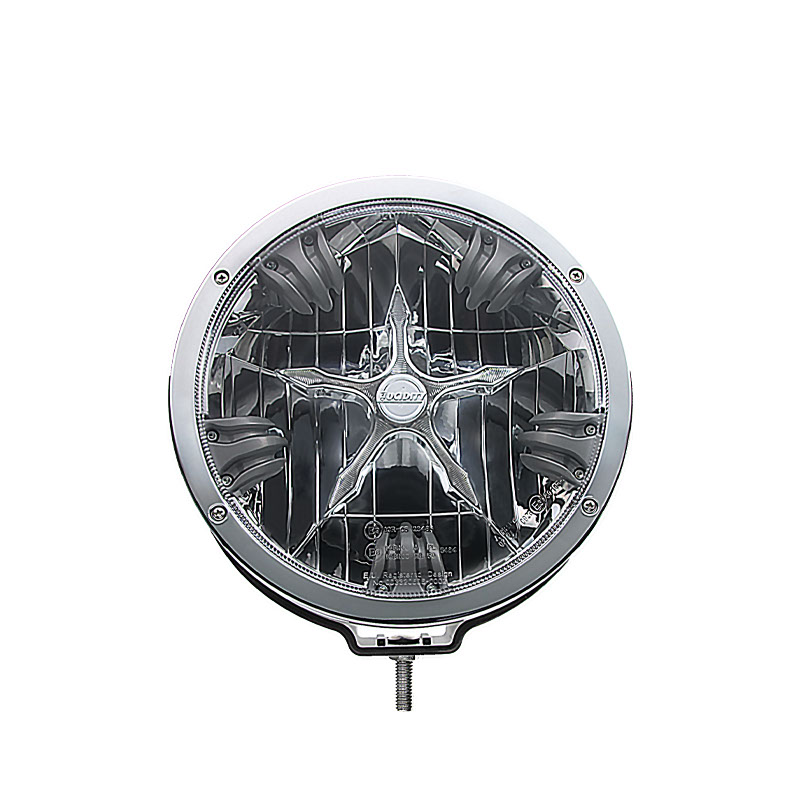

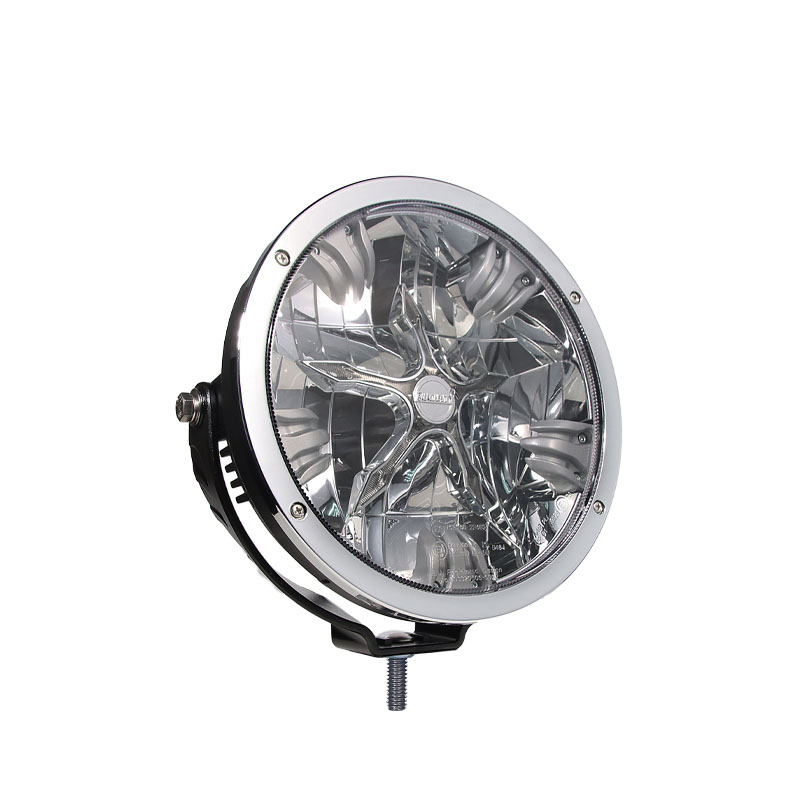

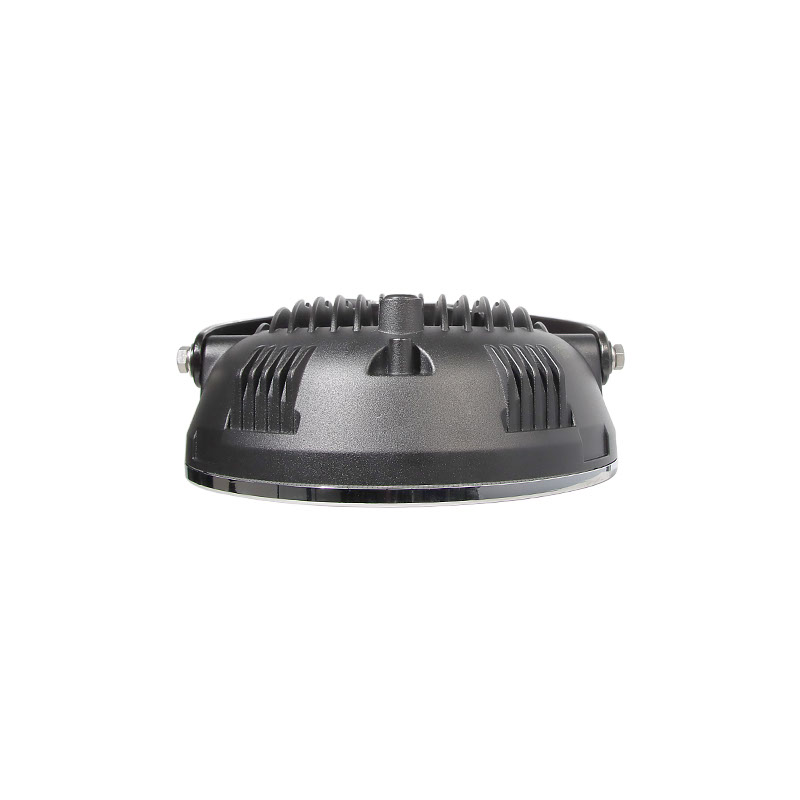

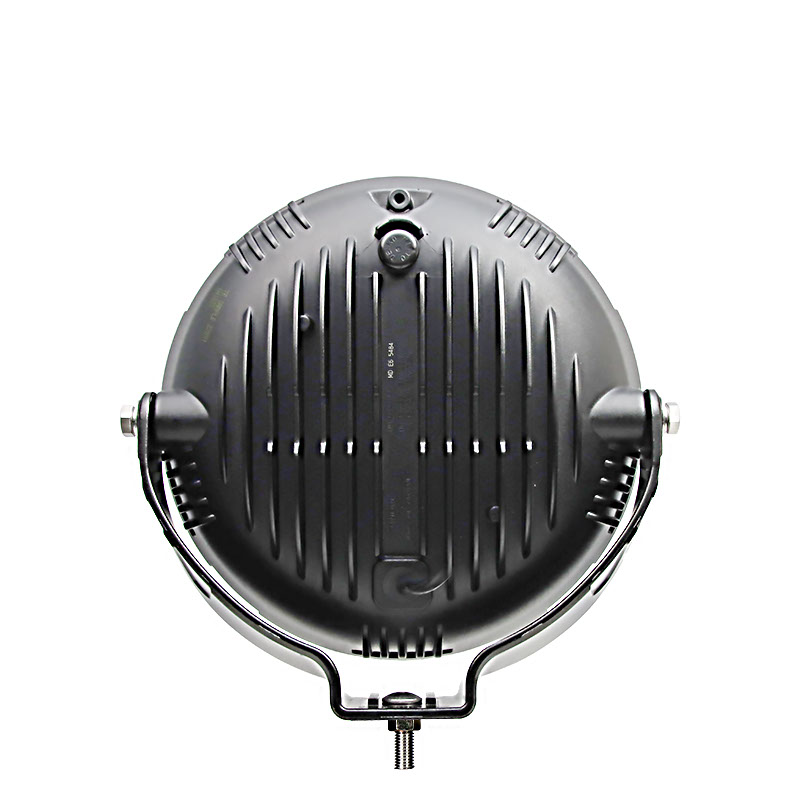

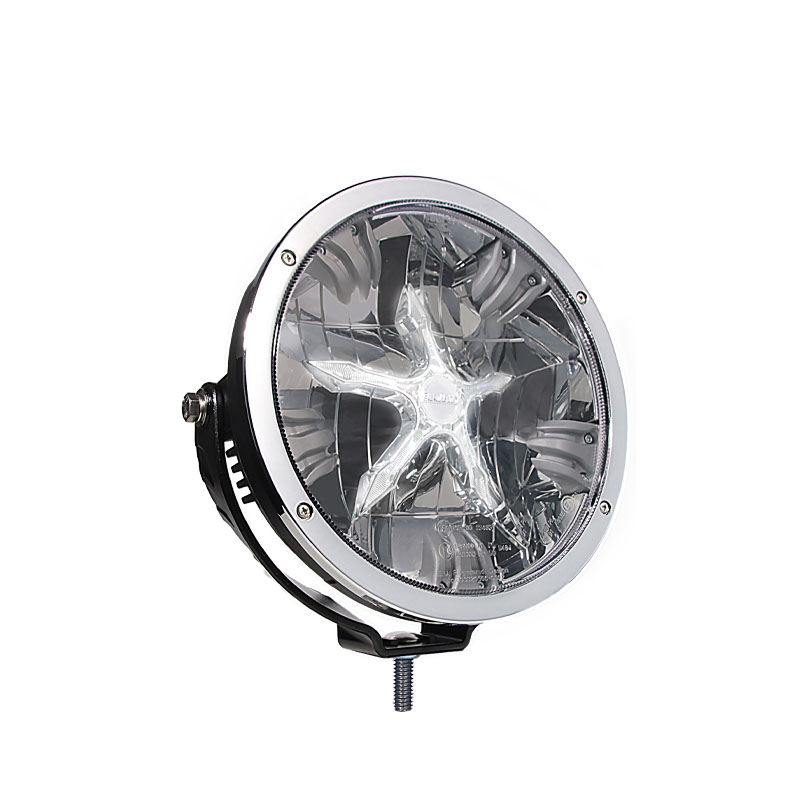

9'' LED Auxiliary Driving Lamp
- High Power 9W LEDs for exceptional performance (reference no. 50)
- Optimal illumination provides excellent visibility
- Increases driver’s safety and comfort with less eye fatigue
- Engineered to withstand extreme vibration, shock, dust, and water immersion
- Perfected heat management for long-lasting performance
- Aluminum alloy housing for ultra-light weight
- Suitable for extreme terrain and climate
- Complies with E-mark regulations
Feature
- Part No.
- Regulation
- IP Rating
- Markets
- Shape
- Voltage
- Function
- Mounting Type
- SMD LEDs
- Watts
- Raw Lumen
- Effective Lumen

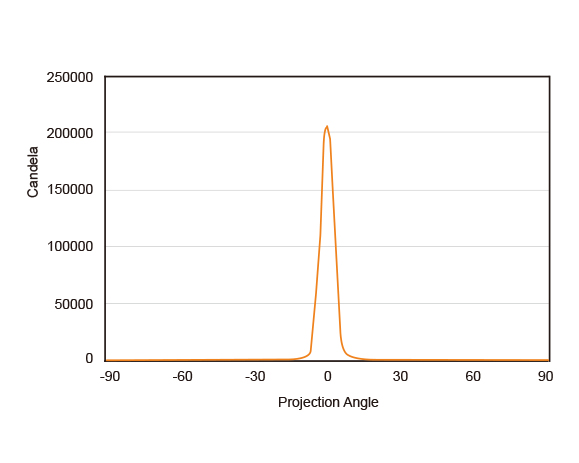

- HV CD
- Reference No.
- Current Draw
- Connection
- Temperature
- Lens
- Housing
- Bracket
- Hardware
- Spares
-
-
22891
- EMC
- IP69K
- Heavy Duty Truck
- Round
- 9~32V
- Driving lamp │ Front position
- Bracket Mounting
- 5
- 34
- 2300
- 1550
- 205000
- 50
- 13.5V at 2.15±0.31A
28V at 0.975±0.205A - 300mm cable
- -30°C~50°C
- PC
- Aluminum
- Zinc cast
- Stainless steel

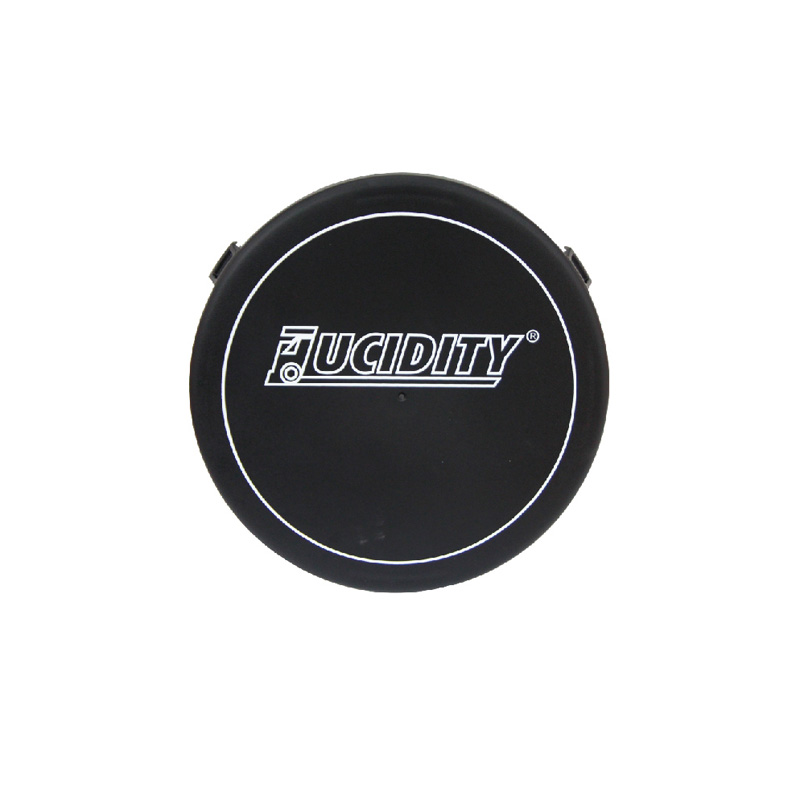

- 69836 Black cover
-
