22816-2

Flood Beam LED Work Lamp

  • Equipped with powerful 10W LED
  • Wide flood work lamp with great luminosity
  • Meets the expectations of the most requiring working environment
  • Virtually unbreakable PC lens with aluminum housing design offers increased reliability and service life
  • Shock-absorber design to withstand constant vibrations (Optional)
  • Water tight configuration to withstand severe applications
NOTE
9~36V available upon request
Feature

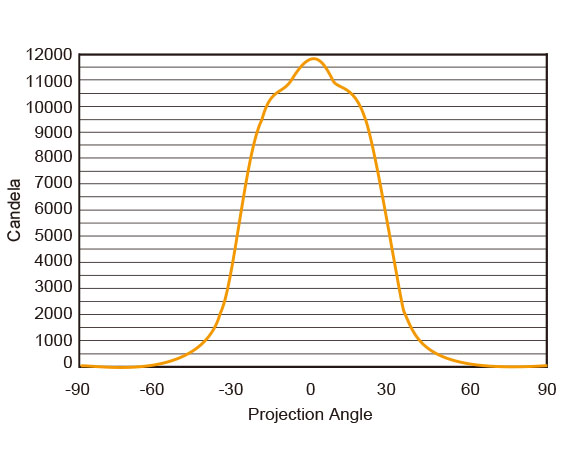

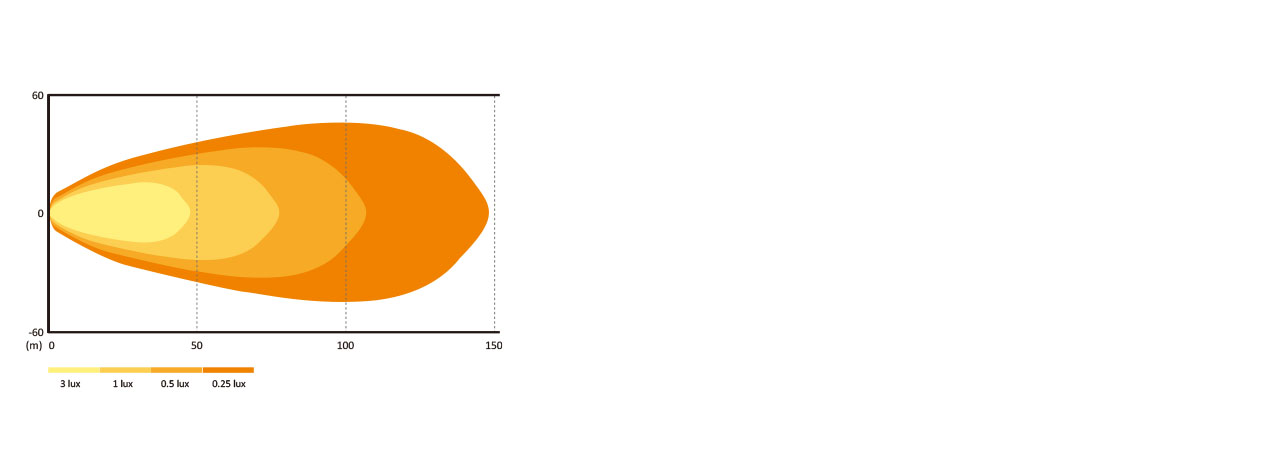

Specification Beam Pattern
  • Part No.
  • Regulation
  • IP Rating
  • Markets
  • Shape
  • Voltage
  • Mounting Type
  • Light Pattern
  • SMD LEDs
  • Watts
  • Raw Lumen
  • Effective Lumen
  • HV CD
  • Current Draw
  • Connection
  • Temperature
  • Lens
  • Housing
  • Bracket
  • Hardware

    • 22816-2

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction
    • Rectangular
    • 12~80V
    • Bracket Mounting
    • Flood
    • 8
    • 59
    • 6100
    • 3200
    • 11530
    • 13.5V at 3.7±0.5A
      28V at 2.1±0.35A
    • 570mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Aluminum
    • Stainless Steel

    • 22816-2S

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction
    • Rectangular
    • 12~80V
    • Bracket Mounting
    • Flood
    • 8
    • 59
    • 6100
    • 3200
    • 11530
    • 13.5V at 3.7±0.5A
      28V at 2.1±0.35A
    • 570mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Aluminum
    • Stainless Steel

    • 22816N-2

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction
    • Rectangular
    • 9~32V
    • Bracket Mounting
    • Flood
    • 8
    • 59
    • 6100
    • 3200
    • 11530
    • 13.5V at 3.7±0.5A
      28V at 2.1±0.35A
    • 570mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Aluminum
    • Stainless Steel

    • 22816N-2S

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction
    • Rectangular
    • 9~32V
    • Bracket Mounting
    • Flood
    • 8
    • 59
    • 6100
    • 3200
    • 11530
    • 13.5V at 3.7±0.5A
      28V at 2.1±0.35A
    • 570mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Aluminum
    • Stainless Steel
