22835

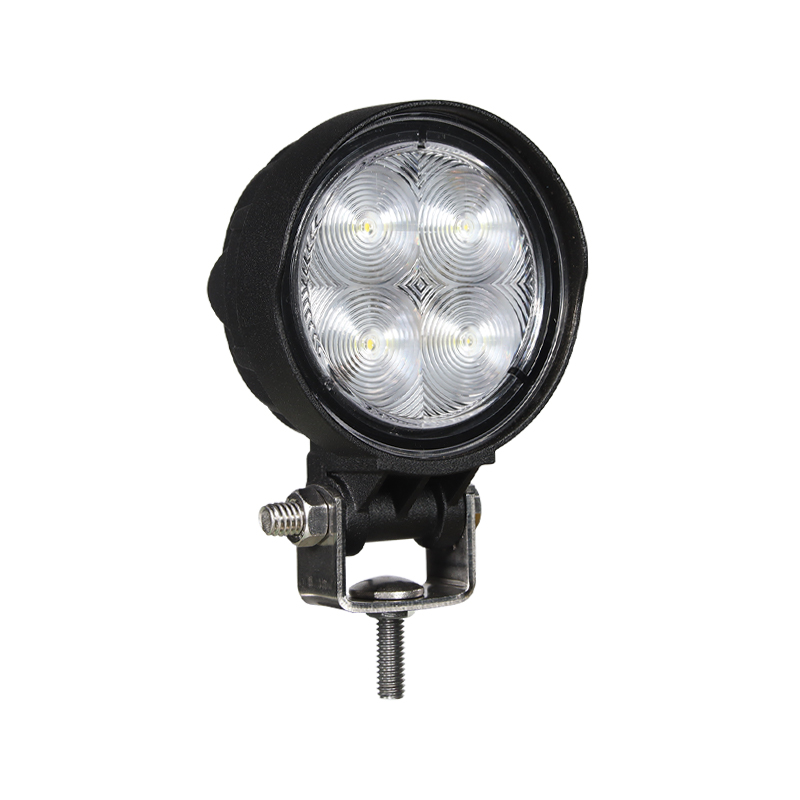

Flood Beam LED Work Lamp

  • Even fading pattern without hotspots
  • Water tight configuration to withstand the severe applications
  • Low power consumption
  • Available with Built-in Deutsch connector
  • ADR approval version available upon request
Feature
Specification Beam Pattern
  • Part No.
  • Regulation
  • IP Rating
  • Markets
  • Shape
  • Voltage
  • Mounting Type
  • Light Pattern
  • SMD LEDs
  • Watts
  • Raw Lumen
  • Effective Lumen
  • HV CD
  • Current Draw
  • Connection
  • Temperature
  • Lens
  • Housing
  • Bracket
  • Hardware

    • 22835

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction │ Agriculture
    • Round
    • 9~32V
    • Bracket Mounting
    • Flood
    • 4
    • 11
    • 960
    • 670
    • 4000
    • 13.5V at 0.75A±0.15A
      28V at 0.37A±0.07A
    • 280mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel

    • 22835ADR

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction │ Agriculture
    • Round
    • 9~32V
    • Bracket Mounting
    • Flood
    • 4
    • 11
    • 960
    • 670
    • 4000
    • 13.5V at 0.75A±0.15A
      28V at 0.37A±0.07A
    • 280mm ADR cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel

    • 22835DT

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction │ Agriculture
    • Round
    • 9~32V
    • Bracket Mounting
    • Flood
    • 4
    • 11
    • 960
    • 670
    • 4000
    • 13.5V at 0.75A±0.15A
      28V at 0.37A±0.07A
    • built-in Deutsch connector
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel
