22853

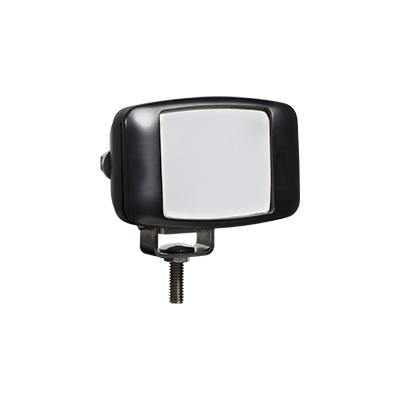

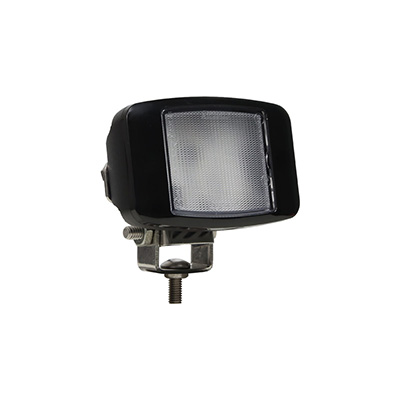

2 in 1 LED Work Lamp

  • 2 functions in 1: reverse lamp & work lamp
  • With 3 cable wires it allows switching between both functions easily
  • ECE R23 approved reverse lamp, no need to tilt the lamp for compliance
  • 2 types of mounting: surface mount & bracket mount at choice
  • Designed to prevent radio and electromagnetic frequency interference
  • Water tight configuration to withstand severe applications
  • Even-fading pattern without hot spot
  • Durable Polycarbonate lens
  • Optional red cover for a distinctive look
Feature
  • Part No.
  • Regulation
  • IP Rating
  • Markets
  • Shape
  • Voltage
  • Mounting Type
  • Light Pattern
  • SMD LEDs
  • Watts
  • Raw Lumen
  • Effective Lumen
  • HV CD
  • Current Draw
  • Connection
  • Temperature
  • Lens
  • Housing
  • Bracket
  • Hardware
    • 22853

    • EMC │ ECE
    • IP69K
    • Heavy Duty Trailer
    • Square
    • 9~32V
    • Bracket Mounting │ Surface Mounting
    • N/A
    • 6
    • 19
    • 1440
    • 1035
    • 900
    • 13.5V at 1.1A±0.25A
      28V at 0.5A±0.13A
    • 280 mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel
